Establishment and Verification of a Capillary Electrophoresis-laser Induced Fluorescence Method for Assessing Linear mRNA Integrity in Gene Therapy Vaccines

doi:10.19586/j.2095-2341.2025.0083

Current Biotechnology ›› 2025, Vol. 15 ›› Issue (6): 1064-1070.DOI: 10.19586/j.2095-2341.2025.0083

• Articles • Previous Articles Next Articles

Establishment and Verification of a Capillary Electrophoresis-laser Induced Fluorescence Method for Assessing Linear mRNA Integrity in Gene Therapy Vaccines

Wenyan CUI¹(), Yue YANG¹, Wenzhong CHEN¹^,², Yan ZUO¹, Liangliang CHEN¹, Xiaodong HU¹

^1.Nanjing Geneleap Biotechnology Co. ，Ltd. ，Nanjing 210000，China
^2.State Key Laboratory of Advanced Drug Delivery and Release Systems，Shandong Luye Pharmaceutical Co. ，Ltd. ，Shandong Yantai 264003，China

Received:2025-07-17 Accepted:2025-09-15 Online:2025-11-25 Published:2026-01-04

Abstract

Abstract:

A linear mRNA integrity capillary electrophoresis-laser induced fluorescence （CE-LIF） method for gene therapy vaccines has been established and validated， in order to provide a reliable detection method for characterization research， quality control and process stability monitoring of gene therapy vaccine products. Linear mRNA integrity was analyzed using CE-LIF， with an injection time of 3 s， a voltage of -2 kV， a separation voltage of 9 kV and an analysis time of 35 min. Using sample GL2327-4-120A， the method was validated for specificity， precision， accuracy， linearity， limit of quantitation （LOQ） and limit of detection （LOD）. The results showed that the resolution between peaks in a mixture of GL2327-4-120A and GL2327-4-0A was 2.86. For six replicate analyses of sample， the relative standard deviation （RSD） of the main peak migration time was 0.05%， and the RSD of the corrected peak area was 0.32%. The recovery rate of the peak area of the GL2327-4-120A samples spiked with the test sample was within the range of 90% to 115%. The mRNA concentration showed a good linear relationship within the range of 0.30~60.0 μg·mL^-1， and the linear regression equation was y = 217 601x - 216 294， R2 = 0.994 9. The LOQ was determined to be 0.30 μg·mL^-1 and the limit of detection （LOD） was 0.06 μg·mL^-1. The established CE-LIF method has good specificity， precision， and accuracy， and can be used to analyze the linear mRNA integrity in gene therapy vaccines.

Key words: gene therapy, mRNA vaccine, capillary electrophoresis, mRNA integrity, method validation, quality control

摘要：

建立基因治疗疫苗线性mRNA完整度毛细管电泳激光诱导荧光（capillary electrophoresis laser induced fluorescence，CE-LIF）检测方法，并进行方法验证，以期为基因治疗疫苗产品的表征研究、质量控制及生产工艺稳定性的监控提供可靠的检测方式。采用激光诱导荧光模式进行线性mRNA完整度分析，进样时间设为3 s，电压为-2 kV，分离电压为9 kV，分析时间为35 min。以GL2327-4-120A为待测样品，验证方法的专属性、精密度、准确性、线性范围、定量限（limit of quantitation，LOQ）及检测限（limit of detection，LOD）。结果发现，GL2327-4-120A与GL2327-4-0A混合溶液样品分离度为2.86；6次重复检测待测样品，主峰迁移时间的相对标准偏差（relative standard deviation，RSD）为0.05%、校正峰面积的RSD为0.32%；待测加标GL2327-4-0A样品峰面积的回收率均在90%~115%范围内；mRNA浓度在0.30~60.0 μg·mL^-1范围内，呈现良好的线性关系，线性回归方程为y= 217 601x-216 294，R²=0.994 9；LOQ为0.30 μg·mL^-1；LOD为0.06 μg·mL^-1。建立的CE-LIF检测方法具有良好的专属性、精密度及准确性，可用于基因治疗疫苗线性mRNA完整度的分析。

关键词: 基因治疗, mRNA疫苗, 毛细管电泳法, mRNA完整度, 方法验证, 质量控制

CLC Number:

Q812

Wenyan CUI, Yue YANG, Wenzhong CHEN, Yan ZUO, Liangliang CHEN, Xiaodong HU. Establishment and Verification of a Capillary Electrophoresis-laser Induced Fluorescence Method for Assessing Linear mRNA Integrity in Gene Therapy Vaccines[J]. Current Biotechnology, 2025, 15(6): 1064-1070.

崔文燕, 杨悦, 陈文忠, 左彦, 陈靓靓, 胡晓冬. 基因治疗疫苗线性mRNA完整度毛细管电泳激光诱导荧光检测方法的建立及验证[J]. 生物技术进展, 2025, 15(6): 1064-1070.

Figures/Tables 8

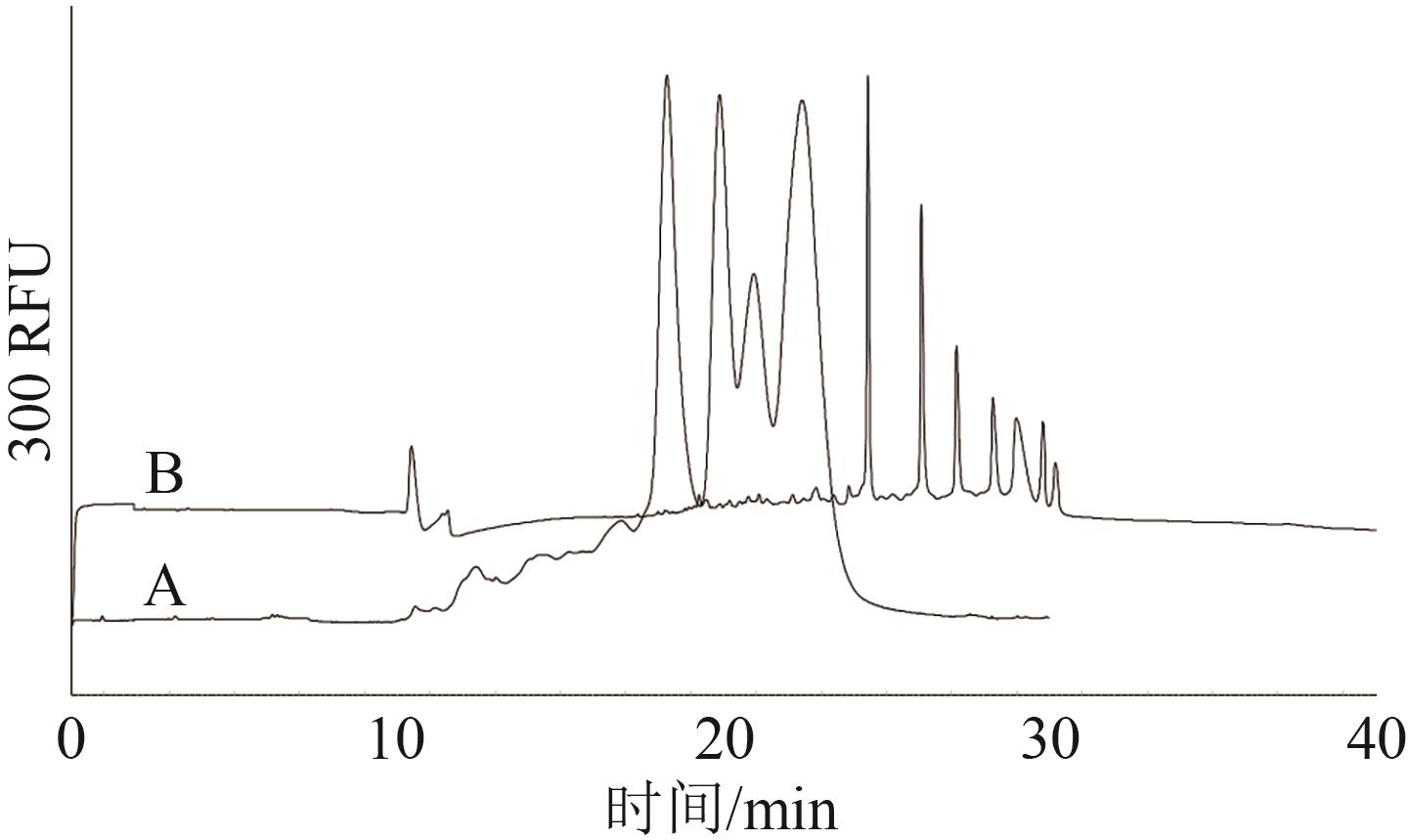

Fig. 1 Capillary effective length optimization electropherograms

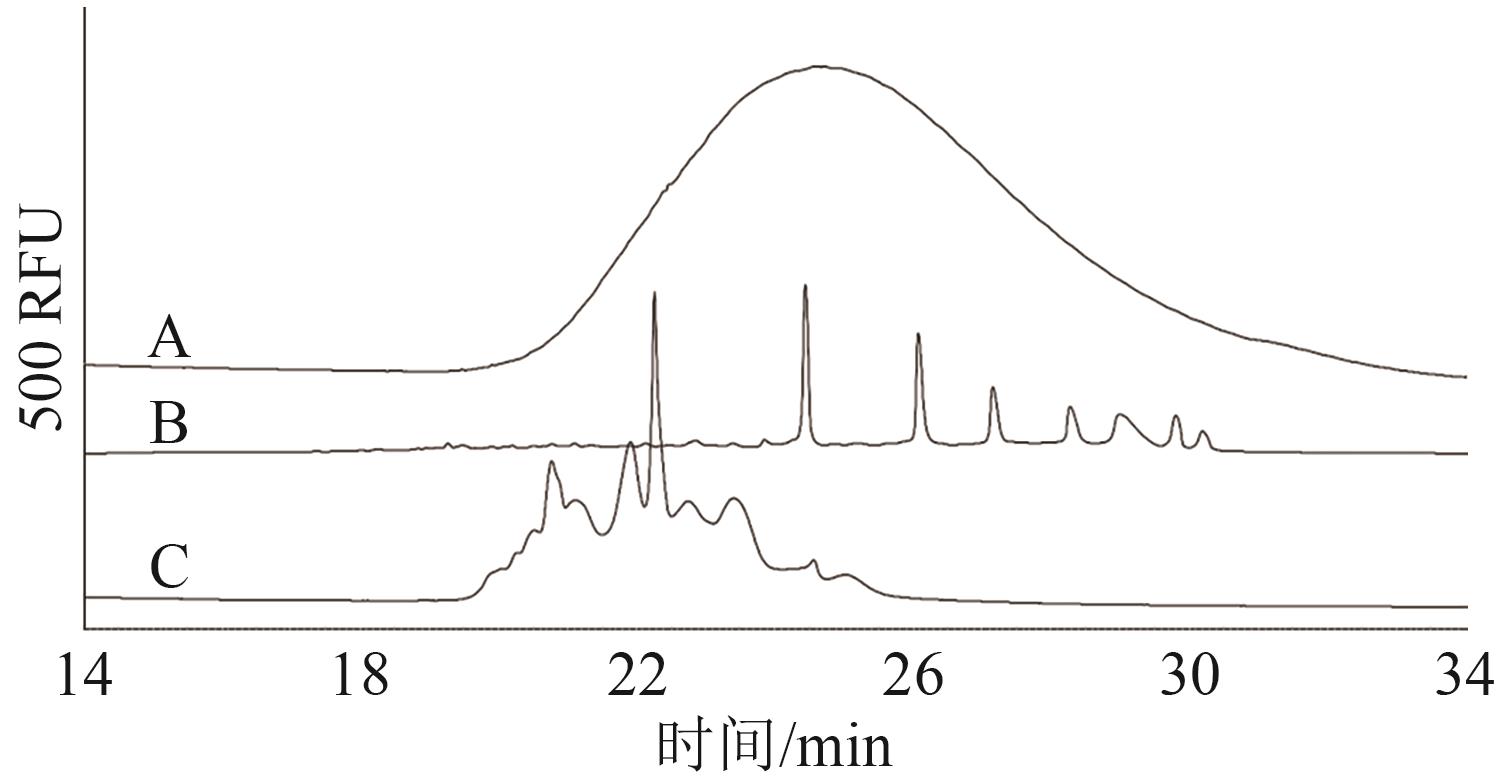

Fig. 2 Separation buffer optimization electropherograms

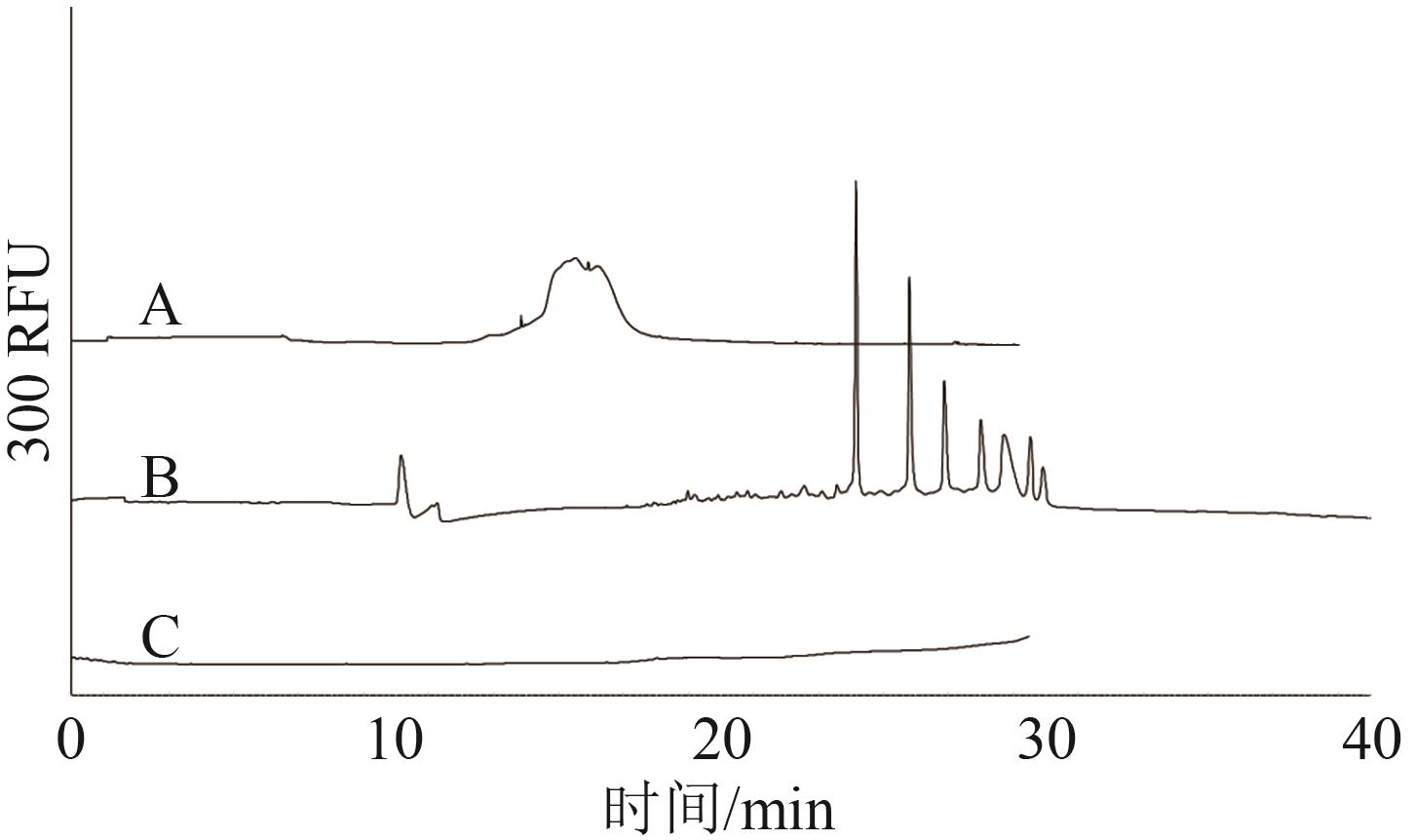

Fig. 3 Sieving matrix optimization electropherograms

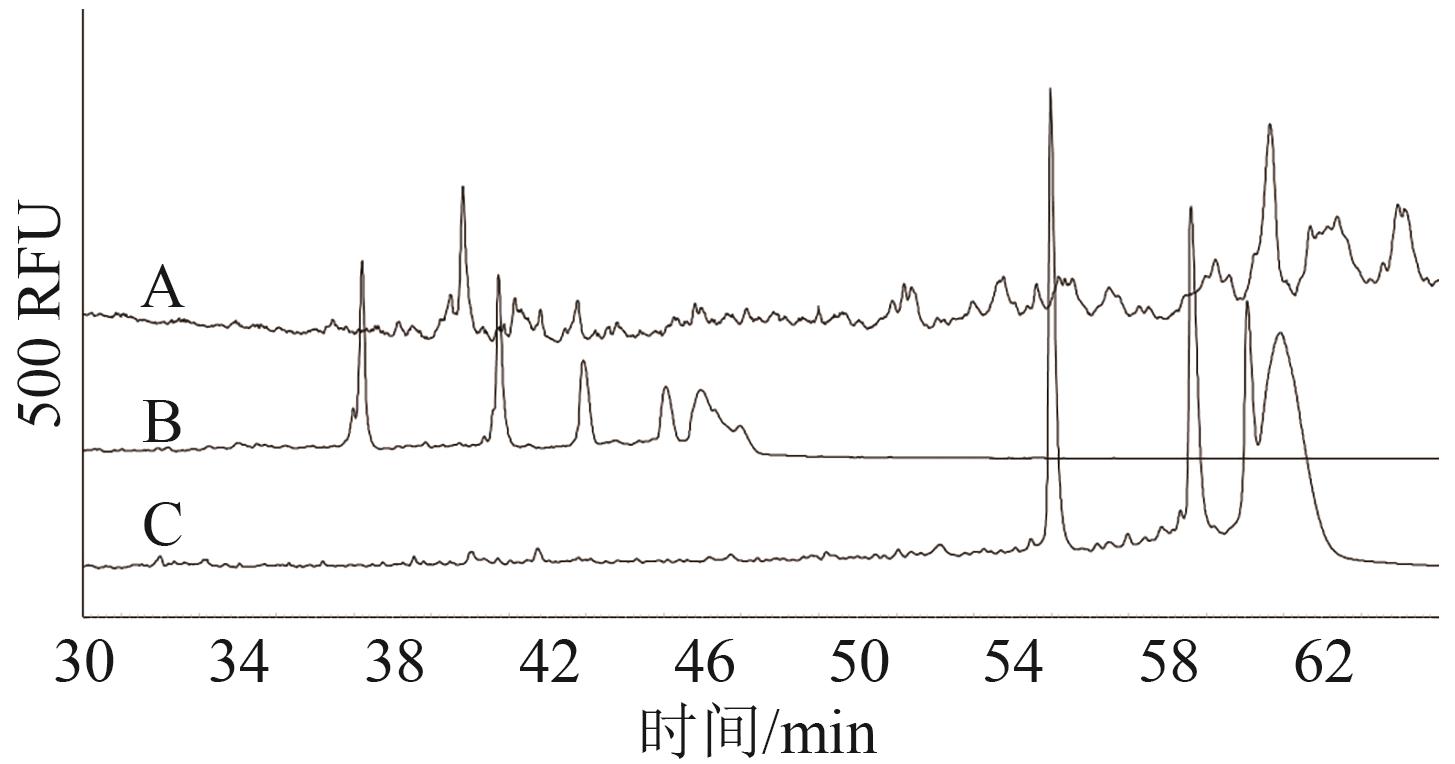

Fig. 4 HEC concentration optimization in sieving matrix electropherograms

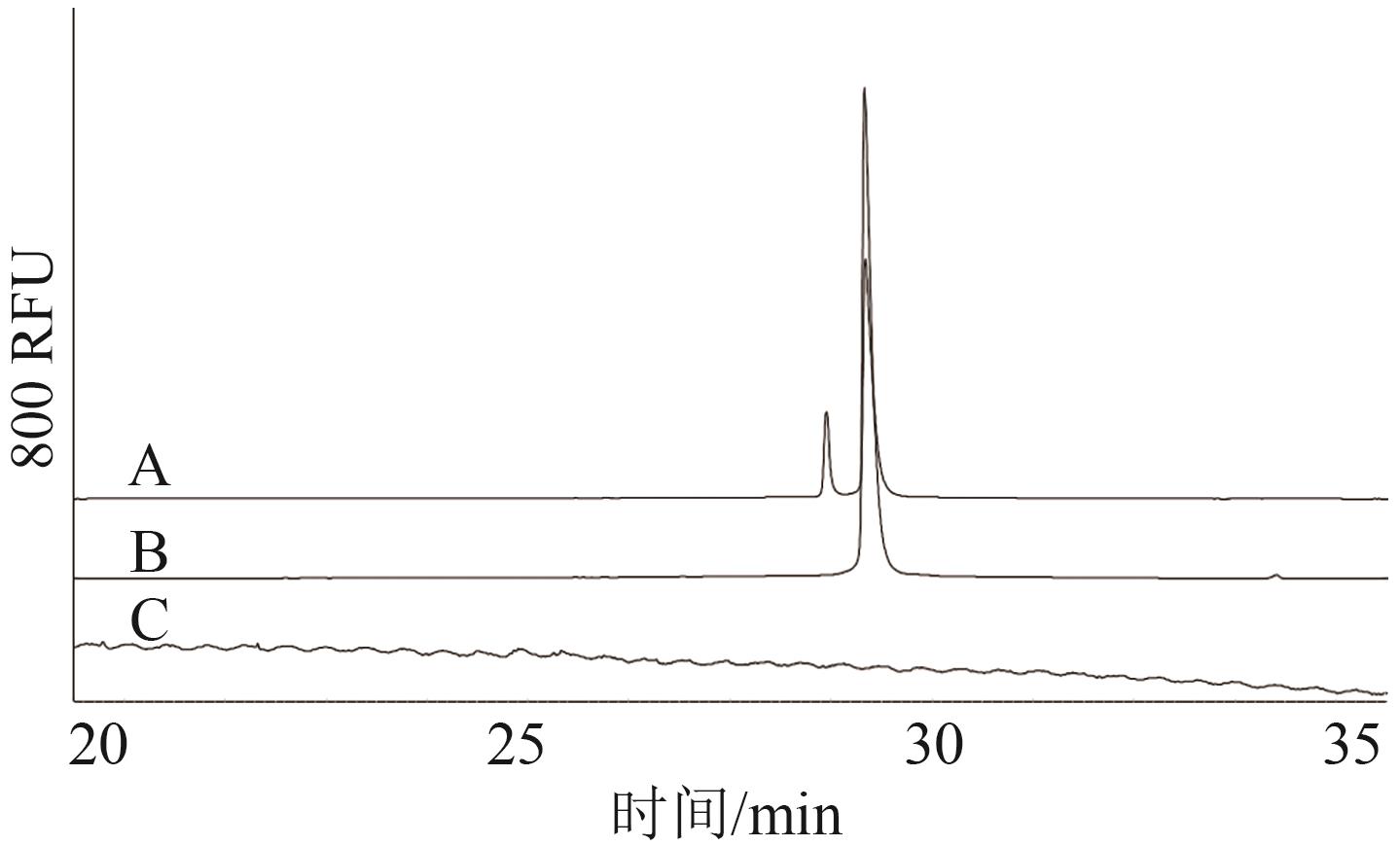

Fig. 5 Verification for specificity

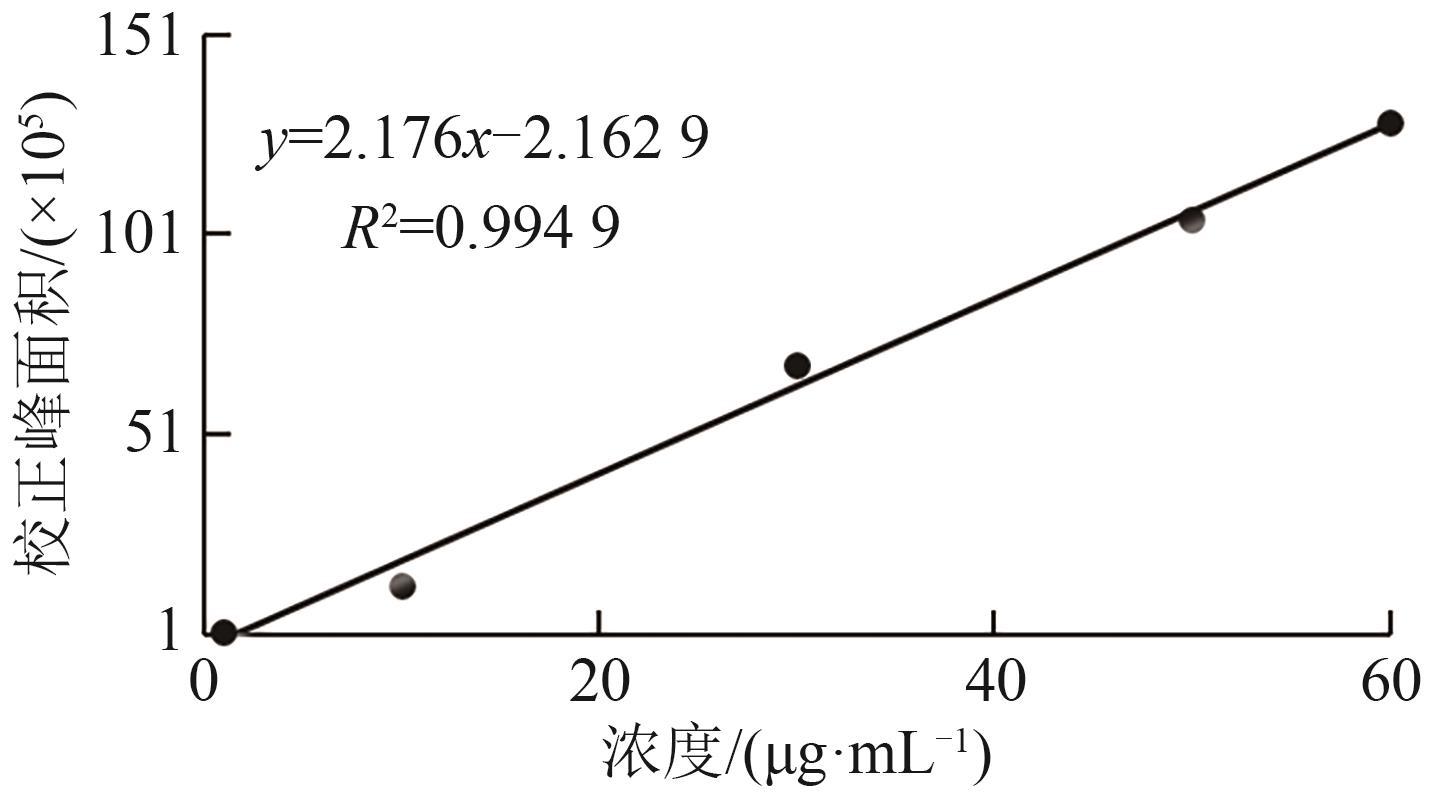

Fig. 6 Linear regression curve for GL2327-4-120A

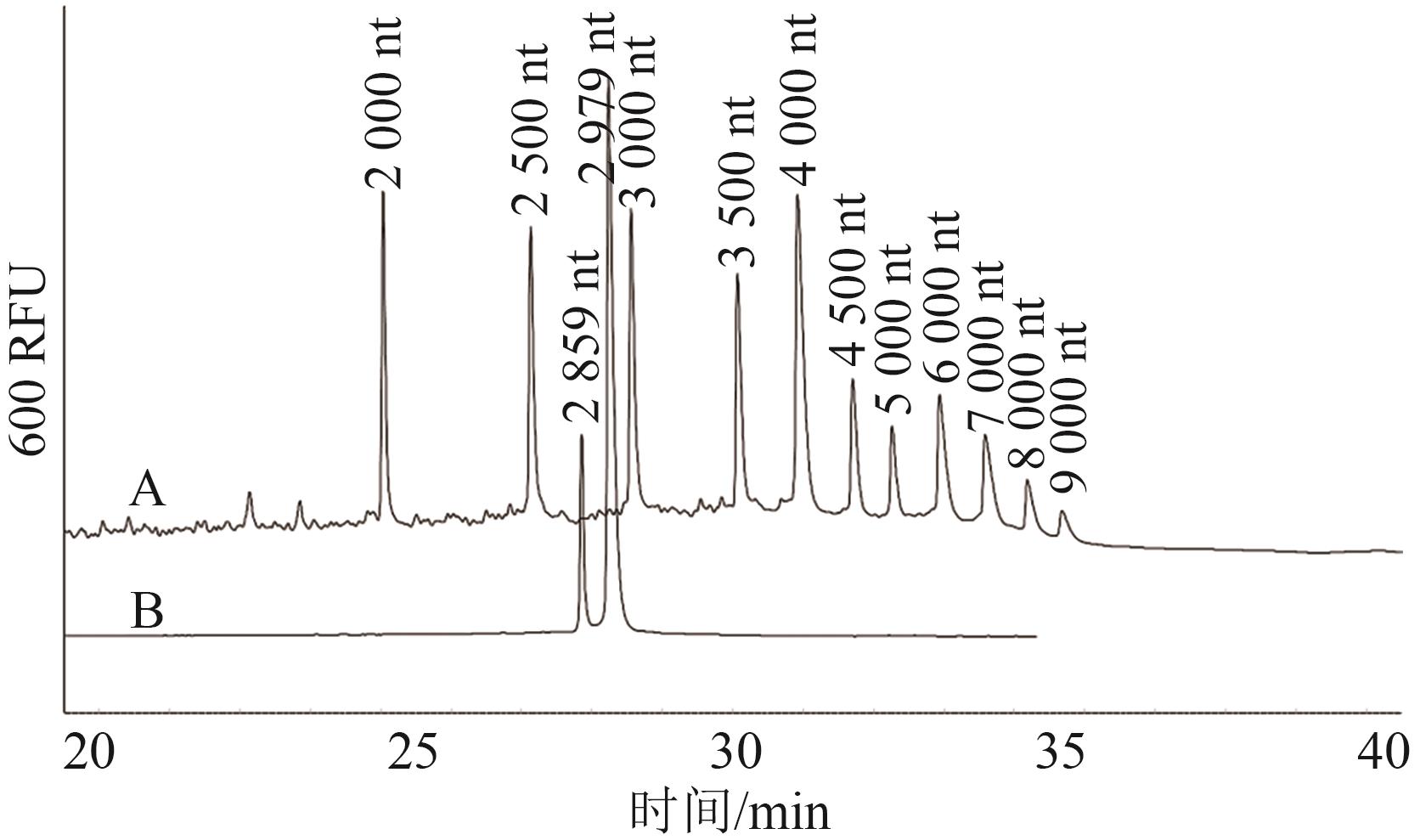

Fig. 7 mRNA mixed samples capillary gel electrophoresis electropherograms

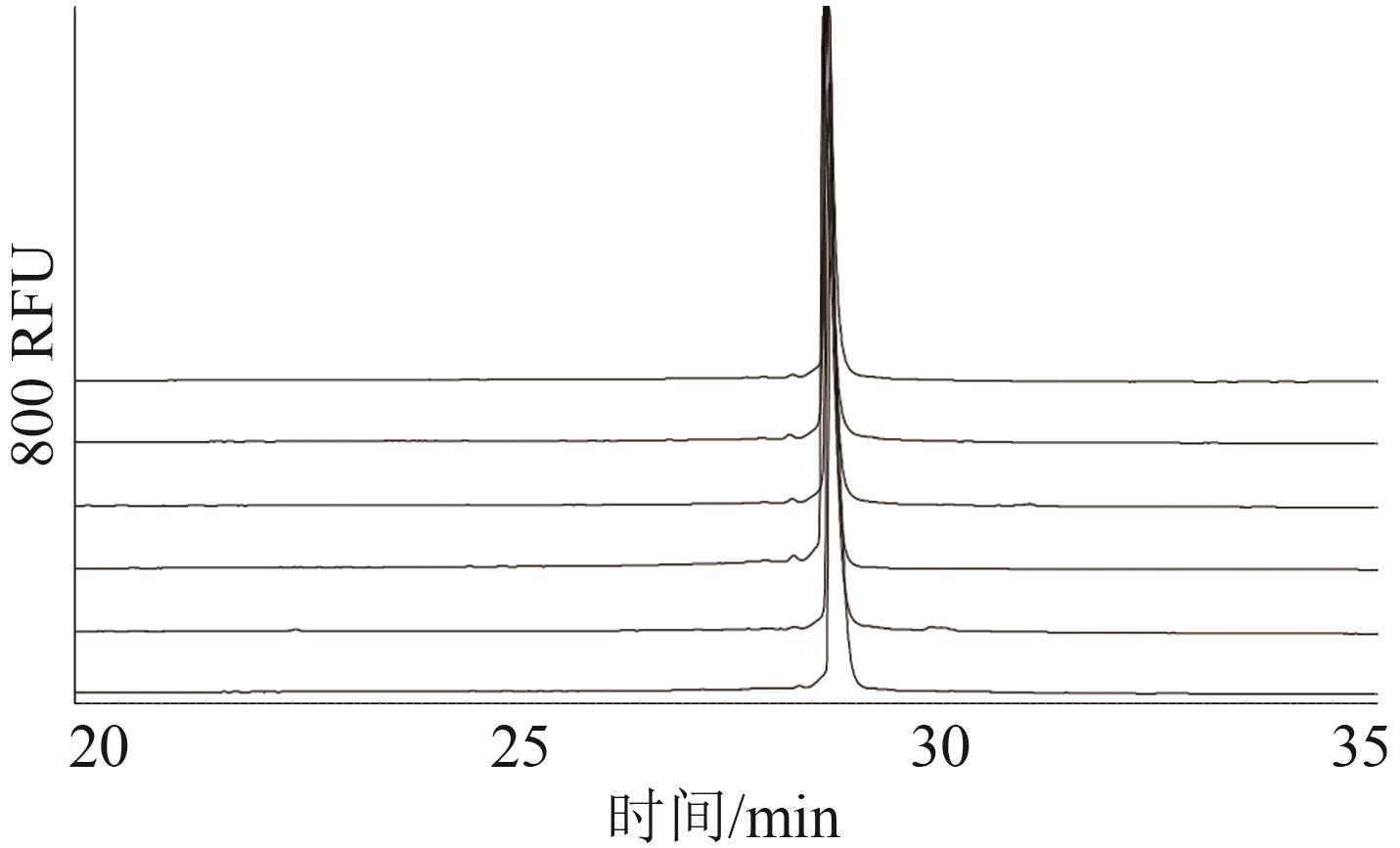

Fig. 8 Capillary gel electrophoresis electropherograms of 6 pilot process samples

References 24

[1]	YIHUNIE W, NIBRET G, ASCHALE Y. Recent advances in messenger ribonucleic acid (mRNA) vaccines and their delivery systems: a review[J]. Clin. Pharmacol., 2023, 15: 77-98.
[2]	XIA S, ZHANG Y, WANG Y, et al.. Safety and immunogenicity of an inactivated SARS-CoV-2 vaccine, BBIBP-CorV: a randomised, double-blind, placebo-controlled, phase 1/2 trial[J]. Lancet Infect. Dis., 2021, 21(1): 39-51.
[3]	THRAN M, MUKHERJEE J, PÖNISCH M, et al.. mRNA mediates passive vaccination against infectious agents, toxins, and tumors[J]. EMBO Mol. Med., 2017, 9(10): 1434-1447.
[4]	YANG R, CUI J. Advances and applications of RNA vaccines in tumor treatment[J/OL]. Mol. Cancer, 2024, 23(1): 226[2025-09-11]. .
[5]	MIAO L, ZHANG Y, HUANG L. mRNA vaccine for cancer immunotherapy[J/OL]. Mol. Cancer, 2021, 20(1): 41[2025-09-11]. .
[6]	ZHANG C, MARUGGI G, SHAN H, et al.. Advances in mRNA vaccines for infectious diseases[J/OL]. Front. Immunol., 2019, 10: 594[2025-09-11]. .
[7]	CHAUDHARY N, WEISSMAN D, WHITEHEAD K A. mRNA vaccines for infectious diseases: principles, delivery and clinical translation[J]. Nat. Rev. Drug Discov., 2021, 20(11): 817-838.
[8]	林长缨,丁晓静.毛细管电泳技术在疾病预防控制领域的应用、发展与挑战[J].色谱,2020,38(9):999-1012.
	LIN C Y, DING X J. Application, development, and challenges of capillary electrophoresis in disease prevention and control[J]. Chin. J. Chromatogr., 2020, 38(9): 999-1012.
[9]	王晓丽,郑飞云,李永仙,等.反相高效液相色谱法测定酵母RNA降解的5'-核苷酸[J].食品研究与开发,2006,27(6):130-131.
	WANG X L, ZHENG F Y, LI Y X, et al.. Determination of 5'-nucleotides degraded from the RNA of yeasts by RP-HPLC[J]. Food Res. Dev., 2006, 27(6): 130-131.
[10]	霍小敏,屠春燕,宋慧敏,等.HPLC法测定酵母RNA降解的4种核苷酸[J].南京工业大学学报(自然科学版),2002,24(4):61-64.
	HUO X M, TU C Y, SONG H M, et al.. Determination of four nucleotides degraded from the RNA of yeasts by HPLC[J]. J. Nanjing Univ., 2002, 24(4): 61-64.
[11]	黄剑英,夏凌,肖小华,等.微芯片电泳技术在生物样品分离分析中的研究进展[J].色谱,2023,41(8):641-650.
	HUANG J Y, XIA L, XIAO X H, et al.. Advances in microchip electrophoresis for the separation and analysis of biological samples[J]. Chin. J. Chromatogr., 2023, 41(8): 641-650.
[12]	唐咏群,施国平,陈火晴,等.一种基于微流控芯片毛细管凝胶电泳检测mRNA完整度的分析方法:CN202311611538.1[P]. 2023-11-29.
[13]	JORGENSON J W. Capillary zone electrophoresis[M]//New Directions in Electrophoretic Methods. Washington, DC: American Chemical Society, 1987: 182-198.
[14]	RASMUSSEN H T, MCNAIR H M. Influence of buffer concentration, capillary internal diameter and forced convection on resolution in capillary zone electrophoresis[J]. J. Chromatogr. A, 1990, 516(1): 223-231.
[15]	WEINBERGER R. Practical capillary electrophoresis. 2nd ed[M]. San Diego: Academic Press, 1999: 10-104.
[16]	崔文燕,郝雪慧,陈宁. mRNA完整度毛细管电泳分析法:202310105252.X[P]. 2023-02-10.
[17]	任冬霞,曹一凡,孙成均,等.毛细管电泳测定microRNA346基因多态性的方法研究[J].四川大学学报(医学版),2018,49(2):280-284.
	REN D X, CAO Y F, SUN C J, et al.. The detection of micro. RNA346 gene polymorphism by capillary electrophoresis[J]. J. Sichuan Univ. Med. Sci. Ed., 2018, 49(2): 280-284.
[18]	齐小花,丁里,张新祥,等.毛细管电泳研究HIV抑制剂、Tat蛋白与RNA的相互作用[J].分析化学,2005,33(2):214-216.
	QI X H, DING L, ZHANG X X, et al.. Study on the interaction of human immunodeficency virus inhibitor, trans-activitor of transcription protein and ribonucleic acid system by capillary electrophoresis[J]. Chin. J. Anal. Chem., 2005, 33(2): 214-216.
[19]	王梅,沈辉.生物技术:"毛细管电泳(CE)"在生物活性物质分离中应用近况[J].生物技术,1996,6(6):3-6.
	WANG M, SHEN H. Recent application of biotechnology-capillary electrophoresis (CE) in separation of bioactive substances[J]. Biotechnology, 1996, 6(6): 3-6.
[20]	MILLER K E, JORGENSON J W. Comparison of microcapillary column length and inner diameter investigated with gradient analysis of lipids by ultrahigh-pressure liquid chromatography-mass spectrometry[J]. J. Sep. Sci., 2020, 43(22): 4094-4102.
[21]	DE SILVA M, OPALLAGE P M, DUNN R C. Investigation of induced electroosmotic flow in small-scale capillary electrophoresis devices: strategies for control and reversal[J]. Electrophoresis, 2024, 45(19-20): 1764-1774.
[22]	FU Q, LI X, ZHANG Q, et al.. A facile and versatile approach for controlling electroosmotic flow in capillary electrophoresis via mussel inspired polydopamine/polyethyleneimine co-deposition[J]. J. Chromatogr. A, 2015, 1416: 94-102.
[23]	ATAMNA I Z, ISSAQ H J, MUSCHIK G M, et al.. Optimization of resolution in capillary zone electrophoresis: combined effect of applied voltage and buffer concentration[J]. J. Chromatogr., 1991, 588(1-2): 315-320.
[24]	BELLO M S, CHIARI M, NESI M, et al.. Prediction of current: voltage dependence and electrochemical calibration for capillary zone electrophoresis[J]. J. Chromatogr. A, 1992, 625(2): 323-330.
